PM DC Planetary Gear Motor 9
Ring Gear Material：
Diameter：28mm OD Planetary Gearbox
Permissible Load Range：0.3N.m~3.0N.m
28JXB30K/28ZY47：Metal

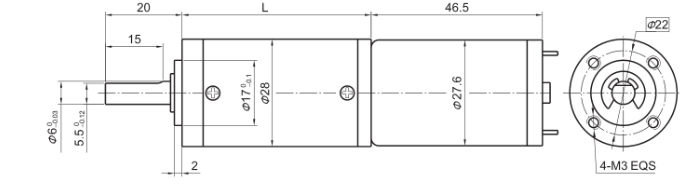

安裝尺寸 Dimensions

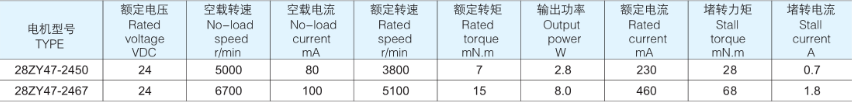

電動機主要技術(shù)參數(shù) Motor Technical Data

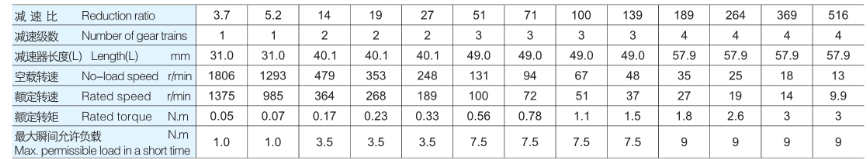

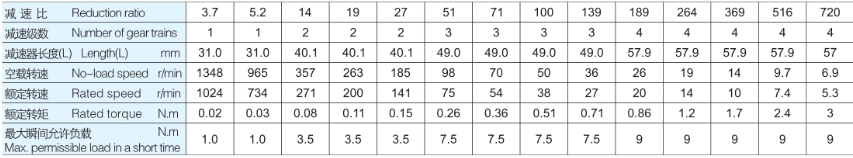

齒輪減速電機主要技術(shù)參數(shù) Gear Motor Technical Data
型號:28ZY47-2450（22ZY47-2450 DC Motor）
型號:28ZY47-2567（28ZY47-2567 DC Motor）
電動機特性圖 Motor Characteristic Figure
