BLDC Planetary Gear Motor 4
Ring Gear Material：
36JXE30K/36ZWNP57：Metal
36JXF30K/36ZWNP57：Powder Metal
Diameter：36mm OD Planetary Gearbox
Permissible Load Range：0.3N.m~3N.m
3 phase 4 poles brushless DC motor ，with external driver

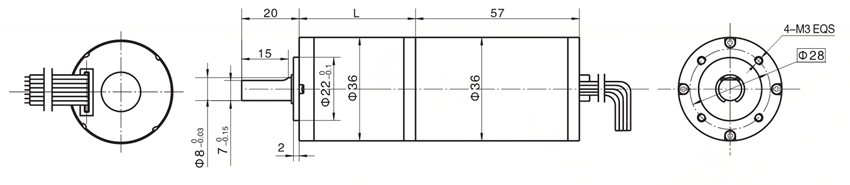

安裝尺寸 Dimensions

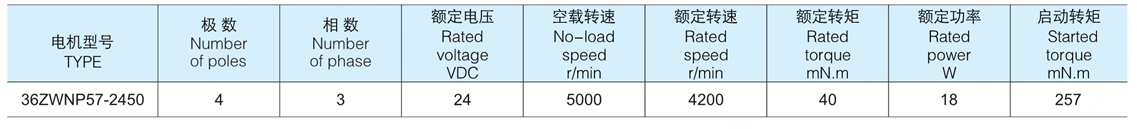

電動機主要技術參數 Motor Technical Data
齒輪減速電機主要技術參數 Gear Motor Technical Data
型號：36ZWNP57-2450（36ZWNP57-2450 BLDC Motor）

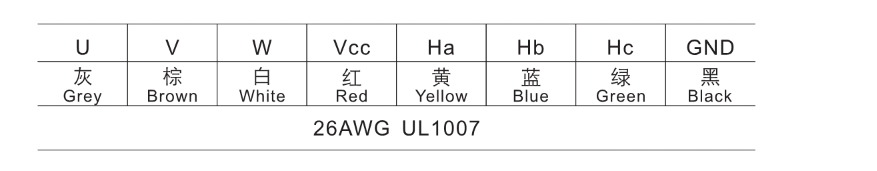

接線方式 Wire Diagram
